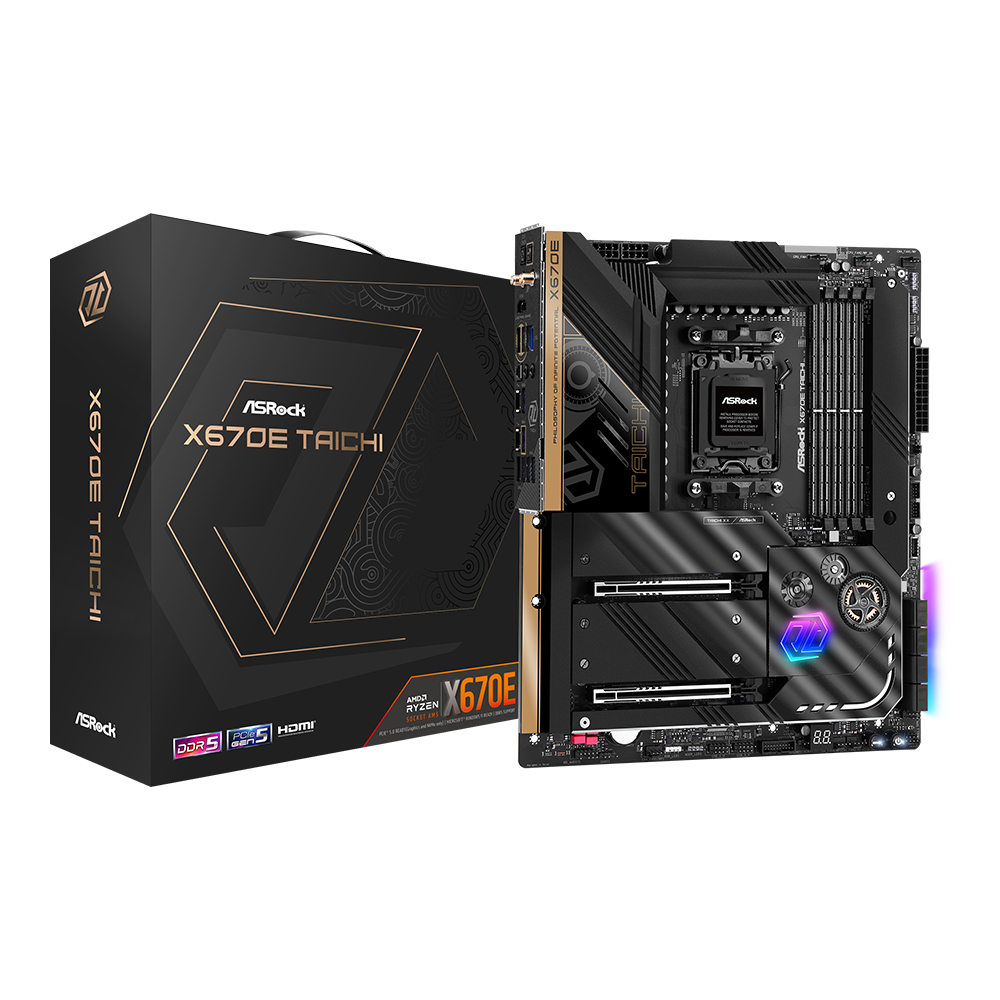

ASRock X670E Taichi

The ASRock X670E Taichi, released in September 2022, is a high-performance motherboard designed to support AMD CPUs, specifically utilizing the AMD Socket AM5. This motherboard is built with the AMD X670E chipset, offering top-tier features and robust performance for gamers and professional users alike.

One of the standout features of the ASRock X670E Taichi is its powerful VRM design, which includes a 24+2+1 phase power delivery system. This ensures stable and efficient power management, making it ideal for overclocking and maintaining peak performance under heavy workloads. The motherboard follows the E-ATX form factor (30.5×26.7cm), providing ample space for additional components and advanced cooling solutions.

In terms of memory capabilities, the ASRock X670E Taichi supports DDR5 memory with speeds up to 7800MHz (PC5-62400). It has four memory slots that can accommodate a maximum capacity of 192GB in a dual-channel configuration. Additionally, it supports both XMP and EXPO memory profiles, allowing users to easily achieve higher memory performance through optimized settings.

The expansion options on this motherboard are extensive. It features a PCIe 5.0 x16 slot, enabling support for the latest and most powerful graphics cards. The board also supports CrossFire technology for multi-GPU setups. Storage options are abundant, with four M.2 slots and eight SATA3 (6Gb/s) ports, providing flexible and high-speed storage solutions. The M.2 slots support both PCIe 5.0 and PCIe 4.0 interfaces, ensuring compatibility with the fastest NVMe SSDs available.

The ASRock X670E Taichi excels in connectivity as well. It includes eight USB A-type ports and two USB C-type ports, with two of the USB4 40Gbps ports located on the rear panel for ultra-fast data transfer. The motherboard also features multiple USB 3.x ports, supporting both 10Gbps and 5Gbps speeds. For network connectivity, it is equipped with a Killer E3100G LAN chipset, offering 2.5Gbps wired LAN speed, along with built-in Wi-Fi and Bluetooth for wireless connections.

Audio performance is another highlight, with the Realtek ALC4082 audio chipset providing high-quality sound through a 5.1 channel analog output. The board includes a variety of audio jacks, including an S/PDIF output for digital audio.

The ASRock X670E Taichi is designed with advanced cooling and lighting in mind. It features multiple fan headers, including six system fan 4-pin headers, ensuring comprehensive cooling solutions for high-performance builds. The motherboard also boasts POLYCHROME RGB lighting with onboard LEDs, logo LEDs, and heatsink LEDs, allowing for extensive customization and a visually stunning setup.

Additional features include SPS (DrMOS) technology, M.2 heatsinks for improved thermal performance, and a user-friendly UEFI BIOS for easy configuration and tuning. The inclusion of a USB 3.2 Type C header, RGB 12V 4-pin header, and ARGB 5V 3-pin headers further enhances its versatility and customization options.

In summary, the ASRock X670E Taichi is a feature-rich motherboard that offers top-notch performance, extensive connectivity, and advanced cooling and lighting options. It is an excellent choice for enthusiasts, gamers, and professionals looking to build a high-performance system with the latest technologies.
