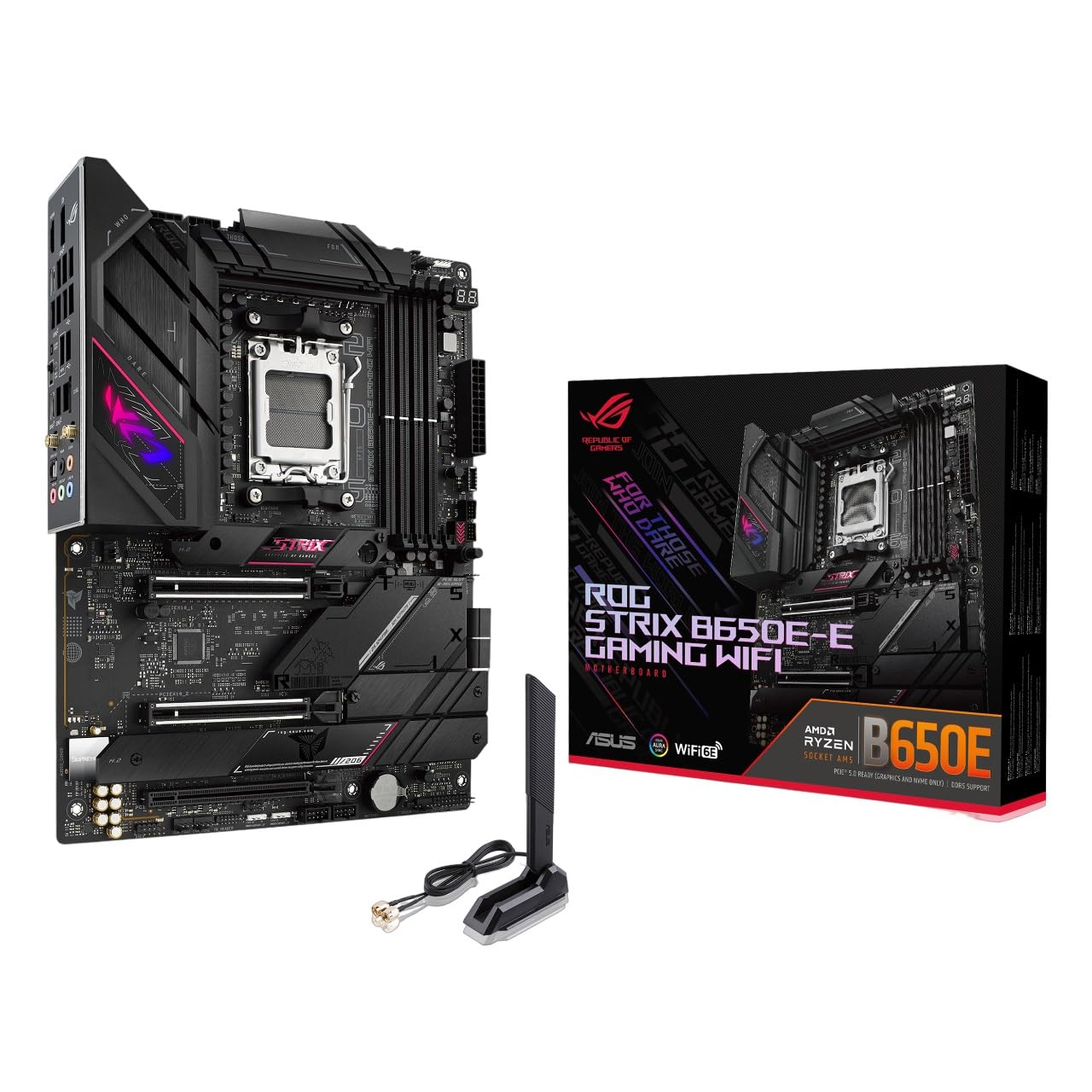

The ASUS ROG STRIX B650E-E GAMING WIFI is a high-performance ATX motherboard designed for AMD CPUs, introduced by ASUS in October 2022. This motherboard is built to support the latest technologies and provide an excellent foundation for gaming and other demanding applications.

Key specifications include:

  • CPU Support: AMD Socket AM5, compatible with the latest AMD CPUs.
  • Chipset: AMD B650E, offering robust performance and connectivity options.
  • Power Delivery: 16+2 phase power design, with each phase delivering 70A for stable and efficient power distribution.

Memory:

  • Type: DDR5, with speeds up to 6400MHz (PC5-51200).
  • Slots: 4 DIMM slots, supporting dual-channel memory.
  • Capacity: Up to 128GB.
  • Technology: EXPO for optimized performance.

Expansion slots:

  • PCIe 5.0 x16: 1 slot for high-performance graphics cards.
  • PCIe 4.0 x16 (at x4): 2 slots for additional expansion.
  • PCIe 4.0 x1: 2 slots for other expansion cards.

Storage:

  • M.2 Slots: 4 slots, supporting PCIe 5.0, PCIe 4.0, and NVMe, with form factors 2242, 2260, 2280, and 22110.
  • SATA3: 4 ports, supporting SATA RAID.

Connectivity:

  • Rear USB Ports:
    • USB 3.x 20Gbps (Type-C) x1
    • USB 3.x 10Gbps (Type-C) x1
    • USB 3.x 10Gbps (Type-A) x6
    • USB 2.0 x4
  • Internal USB Headers:
    • USB 4 header
    • USB 3.0 header
    • USB 2.0 headers x2
    • USB 3.1 Type-C header

Networking:

  • Wired LAN: Intel 2.5Gb Ethernet with RJ-45 connector.
  • Wireless: Wi-Fi and Bluetooth support.

Audio:

  • Chipset: SupremeFX ALC4080
  • Output: 7.1 channel audio.

Cooling and lighting:

  • Heatsinks: Includes VRM heatsinks and M.2 heatsinks.
  • Fan Headers: 5 system fan headers (4-pin).
  • RGB Lighting: AURA SYNC support with front LED, I/O shield (armor) LED, and headers for additional RGB (12V 4-pin) and ARGB (5V 3-pin).

The ASUS ROG STRIX B650E-E GAMING WIFI is packed with features that cater to gamers and power users. With its robust power delivery, extensive connectivity options, advanced cooling solutions, and customizable RGB lighting, it is designed to deliver an exceptional computing experience.
