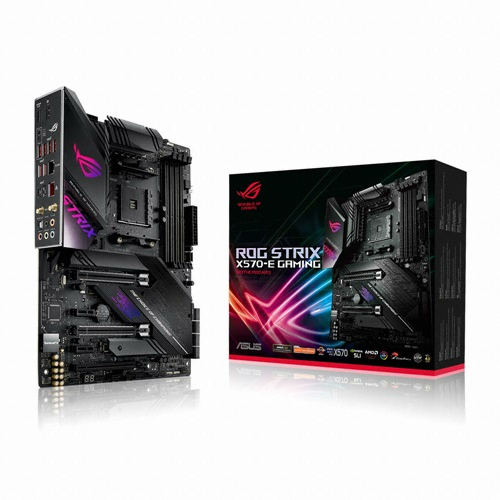

The ASUS ROG STRIX X570-E, released in July 2019, is a high-performance ATX motherboard designed for AMD CPUs using the AM4 socket. This motherboard, featuring the AMD X570 chipset, offers a blend of advanced connectivity, robust power delivery, and extensive expandability, making it ideal for gaming enthusiasts and power users.

Key features of the ASUS ROG STRIX X570-E include:

  • Product Type: AMD CPU motherboard
  • CPU Socket: AMD AM4
  • Chipset: AMD X570
  • Power Phase Design: 12+4 phases, each delivering 60A for stable and efficient power delivery
  • Form Factor: ATX (30.5 x 24.4 cm)

Memory Support:

  • Type: DDR4
  • Speed: Up to 4400MHz (PC4-35200)
  • Slots: 4 DIMM slots
  • Channel: Dual-channel memory architecture
  • Maximum Capacity: 128GB

Expansion Slots:

  • PCIe Slots:
    • Three PCIe 4.0 x16 slots
    • Two PCIe x1 slots
  • Multi-GPU Support: CrossFire X and SLI

Storage Options:

  • M.2 Slots: Two M.2 slots supporting PCIe, NVMe, and SATA interfaces, with form factors 2242, 2260, 2280, and 22110
  • SATA Ports: Eight SATA3 (6Gb/s) ports
  • RAID Support: SATA RAID

Graphics Output:

  • HDMI: Yes
  • DisplayPort: Yes

Rear I/O Ports:

  • USB Ports:
    • One USB 3.x Type-C (10Gbps)
    • Seven USB 3.x Type-A (10Gbps)
  • Other Ports:
    • Two RJ-45
    • S/PDIF
    • Audio jacks

Networking:

  • Wired LAN: Dual Realtek Ethernet, supporting 2.5Gbps
  • Wireless LAN: Bluetooth included

Audio:

  • Audio Chipset: SupremeFX S1220A, providing 7.1 channel HD audio

Internal Headers:

  • USB Headers:
    • USB 3.0
    • USB 2.0
    • USB 3.1 Type-C
  • RGB Headers:
    • Two RGB 12V 4-pin headers
    • Two ARGB 5V 3-pin headers
  • Fan Headers: Two 4-pin system fan headers
  • Other Headers:
    • TPM header

Additional Features:

  • Cooling Solutions:
    • Includes M.2 heatsinks for improved thermal management
    • DrMOS for efficient power delivery
  • Lighting: Integrated AURA SYNC RGB lighting system for customizable aesthetics
  • BIOS: UEFI BIOS for a user-friendly interface and advanced system configuration

The ASUS ROG STRIX X570-E is an excellent choice for users seeking a powerful and feature-rich motherboard. Its advanced connectivity options, robust power delivery, extensive cooling solutions, and customizable lighting make it suitable for building a high-performance gaming rig or professional workstation.
