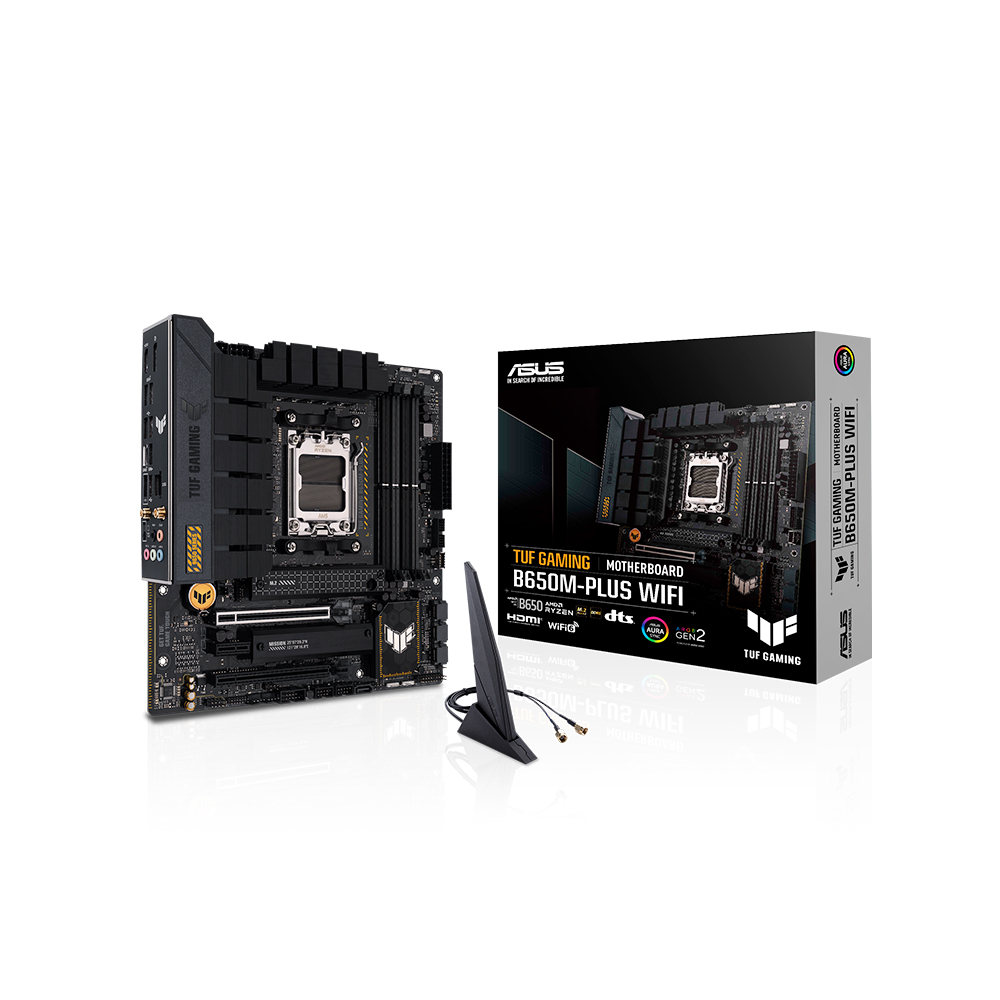

ASUS TUF Gaming B650M-PLUS WIFI

The ASUS TUF Gaming B650M-PLUS WIFI is a robust micro-ATX motherboard designed for AMD CPUs, featuring the latest technologies and a strong power delivery system. Released in October 2022, it is well-suited for gamers and PC enthusiasts looking for reliability and performance.

Key features include:

• Socket and Chipset: AMD Socket AM5 with the AMD B650 chipset.
• Form Factor: Micro-ATX (24.4×24.4cm) with a 12+2 phase power delivery system, each phase capable of delivering 60A.

Memory support:

• Type: DDR5
• Speed: Up to 6400MHz (PC5-51200)
• Slots: Four memory slots supporting dual-channel configuration.
• Capacity: Maximum capacity of 128GB.
• Technology: Supports AMD EXPO for memory overclocking.

Expansion slots:

• PCIe 4.0 x16: One slot for high-speed graphics cards.
• PCIe 4.0 x16 (at x4): One additional slot.
• PCIe 3.0 x1: One slot.

Storage interfaces:

• M.2 Slots: Two slots supporting PCIe 5.0 and PCIe 4.0, NVMe for high-speed storage.
• SATA3 (6Gb/s): Four ports, supporting both NVMe and SATA RAID configurations.
• M.2 Form Factors: Compatible with 2242, 2260, and 2280.

Graphics outputs:

• HDMI and DisplayPort for multi-monitor setups.

Rear I/O ports:

• USB Ports:
  • USB 3.x 20Gbps: One Type-C port.
  • USB 3.x 10Gbps: Two Type-A ports.
  • USB 3.x 5Gbps: One Type-A port.
  • USB 2.0: Four Type-A ports.
• Network: Realtek 2.5Gbps LAN and Wi-Fi with Bluetooth.
• Audio: Realtek chipset supporting 7.1-channel output.

Additional features:

• Cooling and Tuning:
  • DrMOS and VRM heatsinks for effective power management.
  • M.2 heatsinks for better thermal performance.
  • UEFI BIOS for advanced system configuration.
  • Multiple fan headers and RGB/ARGB headers for customizable cooling and lighting setups.

This motherboard combines advanced features, extensive connectivity, and robust power management, making it an excellent choice for building a high-performance gaming or professional PC.
