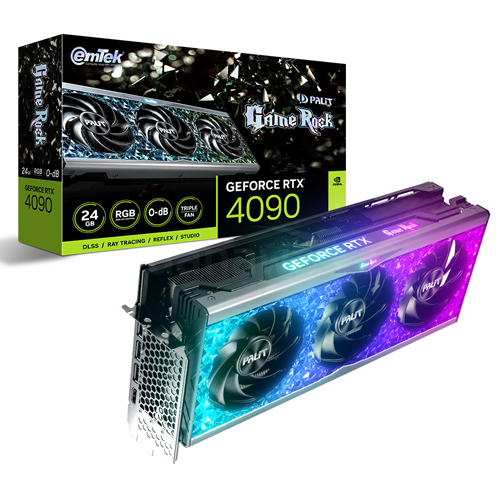

EMTEK GeForce RTX 4090 GAMEROCK OC D6X 24GB

The EMTEK GeForce RTX 4090 GAMEROCK OC D6X 24GB is a high-performance graphics card from EMTEK, launched in October 2022. It features the latest NVIDI
18 Oct
« Back to Glossary Index

The EMTEK GeForce RTX 4090 GAMEROCK OC D6X 24GB is a high-performance graphics card from EMTEK, launched in October 2022. It features the latest NVIDIA chipset technology and is part of the GeForce RTX 40 series.

Key specifications include:

  • Chipset: NVIDIA RTX 4090, utilizing a 4nm manufacturing process
  • Clock Speeds: Base clock of 2235MHz and a boost clock of 2610MHz
  • CUDA Cores: 16,384, ensuring powerful parallel processing capabilities
  • Interface: PCIe 4.0 x16 for fast data transfer

Memory details:

  • Type: GDDR6X (DDR6X)
  • Speed: 21000MHz
  • Bus Width: 384-bit

Graphics output options:

  • HDMI Ports: 1
  • DisplayPort: 3
  • Maximum Monitor Support: 4

The card supports advanced features including 0-dB fan technology, 8K and 4K video output, HDR, and HDCP 2.3 for enhanced viewing experiences.

Power requirements and cooling:

  • Power Consumption: Up to 450W, with a recommended power supply of 1000W or more
  • Power Connector: Single 16-pin (12VHPWR)
  • Power Phase: 19-phase power delivery
  • Cooling: Equipped with a heatsink, heat pipes, vapor chamber, and triple fan cooling system

Additional features include:

  • Backplate
  • DrMOS
  • LED Lighting: Both front and side LEDs
  • Dual BIOS
  • VGA Support Bracket included in the package

This combination of features ensures the EMTEK GeForce RTX 4090 GAMEROCK OC D6X 24GB delivers exceptional performance for gaming and professional applications.
