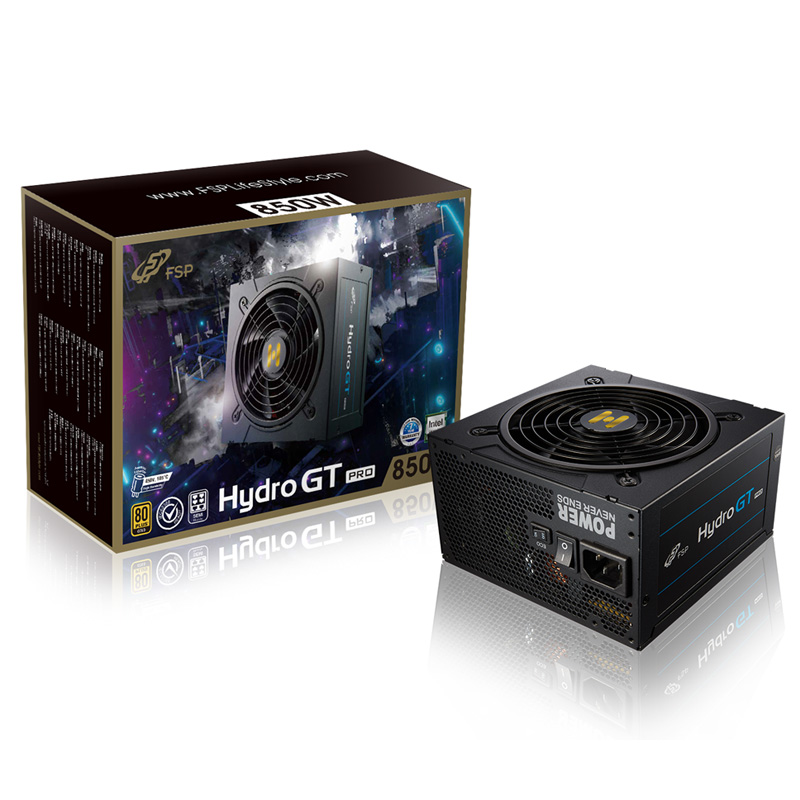

FSP HYDRO GT PRO 850W 80PLUS Gold

The FSP HYDRO GT PRO 850W 80PLUS Gold, released in January 2022, is a high-efficiency ATX power supply unit (PSU) designed for demanding PC builds. It
15 Feb
« Back to Glossary Index

The FSP HYDRO GT PRO 850W 80PLUS Gold, released in January 2022, is a high-efficiency ATX power supply unit (PSU) designed for demanding PC builds. It offers reliable power delivery, advanced features, and robust protection mechanisms, making it ideal for gaming systems and professional workstations.

Key features of the FSP HYDRO GT PRO 850W 80PLUS Gold include:

  • Rated Output: 850W
  • Efficiency Certification: 80 PLUS Gold, ensuring high energy efficiency and reduced power consumption
  • +12V Rail: Single rail design with 100% availability, providing 70.83A

Power Output:

  • +3.3V: 20A
  • +5V: 20A
  • -12V: 0.3A
  • +5Vsb: 2.5A

Cooling and Noise:

  • Cooling Fan: 120mm with HDB/HYB bearing for quiet and efficient operation
  • Fanless Mode: Ensures silent operation under low loads

Physical Specifications:

  • Dimensions: Depth of 150mm

Warranty:

  • A/S Warranty: 7 years of free warranty service

Connectors:

  • Cable Design: Semi-modular for improved airflow and easier cable management
  • Main Power: 24-pin (20+4) connector
  • Auxiliary Power: Two 8-pin (4+4) connectors
  • PCIe Power: Six 8-pin (6+2) connectors
  • SATA Power: Ten connectors
  • IDE Power: Two 4-pin connectors

Additional Features:

  • Fan Control: Automatic fan adjustment for optimal cooling
  • Standby Power Consumption: Less than 1W for energy savings
  • Free Voltage (FreVolt): Compatible with a wide range of voltages
  • Flat Cables: For better cable management and improved airflow

Internal Design:

  • Components: 105°C capacitors for enhanced reliability and longevity
  • DC to DC Design: For stable and efficient power conversion
  • LLC Resonant Converter: Improves efficiency and reduces power loss

Protection Features:

  • Over Voltage Protection (OVP)
  • Over Current Protection (OCP)
  • Over Power Protection (OPP)
  • Over Temperature Protection (OTP/OHP)
  • Short Circuit Protection (SCP)

The FSP HYDRO GT PRO 850W 80PLUS Gold PSU is an excellent choice for users seeking a reliable, efficient, and feature-rich power supply. Its high efficiency, semi-modular design, and extensive protection features make it suitable for a wide range of high-performance computing applications.
