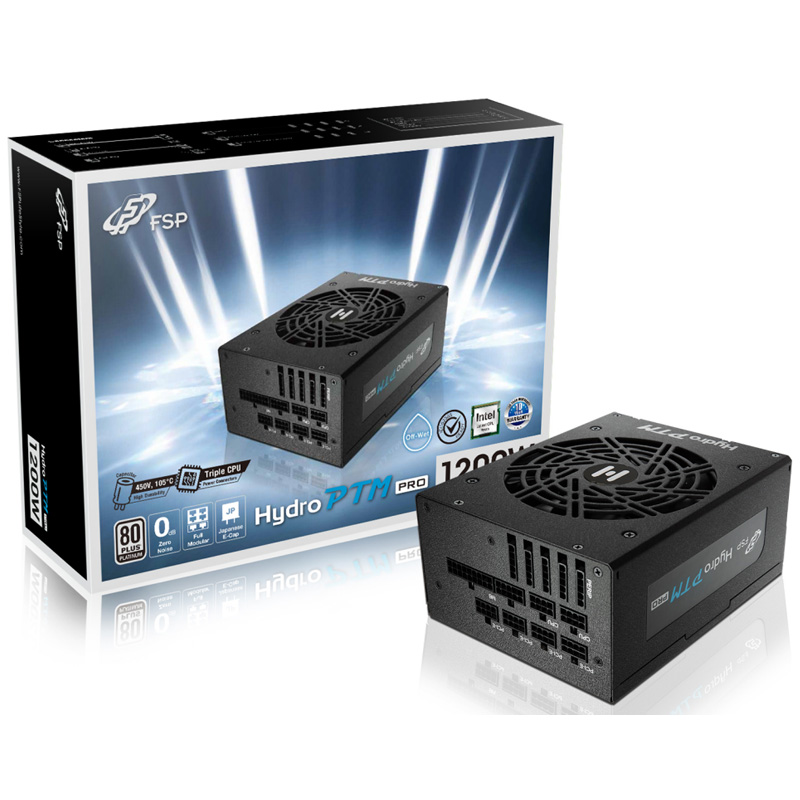

FSP HYDRO PTM PRO 1200W 80 PLUS PLATINUM

The FSP HYDRO PTM PRO 1200W 80 PLUS PLATINUM, introduced in September 2020, is a high-efficiency ATX power supply designed to meet the demands of high-performance PC builds. With its robust features and certification, it ensures reliable power delivery and efficiency.

Key specifications include:

• Product Type: ATX power supply
• Rated Output: 1200W
• 80 PLUS Certification: Platinum
• Voltage Regulation: ±1%
• +12V Output: Single rail, 100A
• PFC Circuit: Active PFC
• Cooling Fan Size: 135mm
• Cooling Fan Type: 1 FDB (Fluid Dynamic Bearing) fan
• Depth: 190mm
• Warranty: 10 years (free warranty service)

DC output:

• +3.3V Output: 20A
• +5V Output: 20A
• +12V Output: 100A
• -12V Output: 0.3A
• +5Vsb Output: 3.0A

Connectivity:

• Modular Design: Fully modular
• Main Power Connector: 24-pin
• Auxiliary Power Connectors: 3 x 8-pin (4+4)
• PCIe 8-pin (6+2): 8 connectors
• SATA: 14 connectors
• IDE 4-pin: 5 connectors
• FDD: 1 connector

Additional features:

• Fanless Mode: Yes
• Automatic Fan Control: Yes
• Manual Fan Control: Yes
• Low Standby Power Consumption: <1W
• Universal Voltage Support (Free Voltage): Yes
• Flat Cables: Yes

Internal design and components:

• 105°C Rated Capacitors: Yes
• DC to DC Design: Yes
• LLC Resonant Converter: Yes

Protection circuits:

• Over Voltage Protection (OVP): Yes
• Under Voltage Protection (UVP): Yes
• Over Current Protection (OCP): Yes
• Over Power Protection (OPP): Yes
• Over Temperature Protection (OTP/OHP): Yes
• Short Circuit Protection (SCP): Yes

The FSP HYDRO PTM PRO 1200W 80 PLUS PLATINUM is designed for users who require efficient and reliable power delivery for their high-end systems. Its 80 PLUS Platinum certification ensures top-tier energy efficiency, while the fully modular design and extensive connectivity options make it versatile and easy to work with. The inclusion of advanced cooling and protection features further enhances its appeal for demanding applications.
