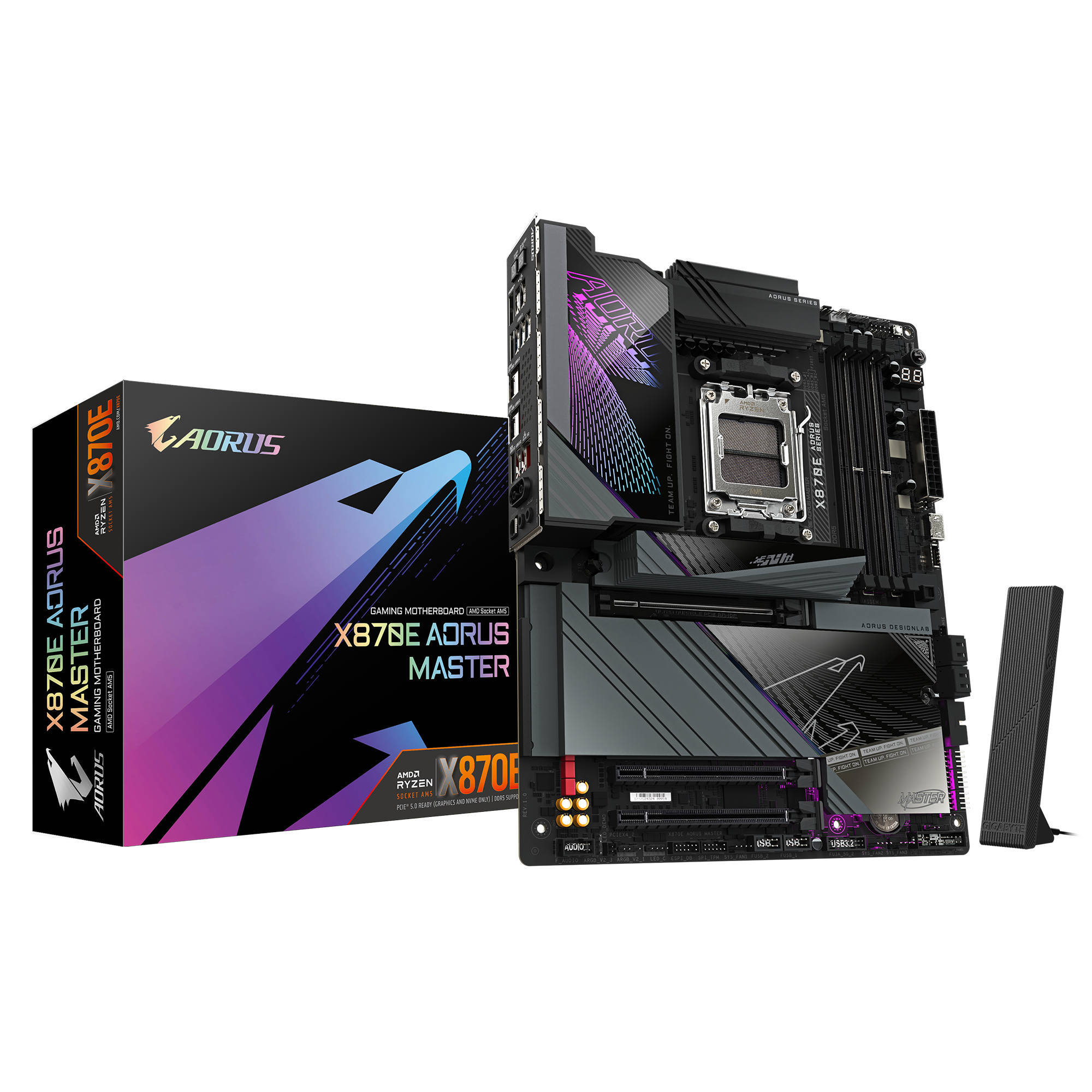

GIGABYTE X870E AORUS MASTER

The GIGABYTE X870E AORUS MASTER motherboard is a powerful and versatile platform designed for AMD processors with AM5 socket compatibility, targeting
03 Nov
« Back to Glossary Index

The GIGABYTE X870E AORUS MASTER motherboard is a powerful and versatile platform designed for AMD processors with AM5 socket compatibility, targeting users who demand robust performance and expandability for gaming or intensive computing tasks.

Key features include:

  • Advanced Chipset: Powered by the AMD X870E chipset, it provides a strong foundation for AMD’s latest CPUs, supporting overclocking and high-efficiency power delivery with a 16+2+2 phase VRM design and 110A per phase.
  • Memory Support: Optimized for DDR5 memory at speeds up to 8600MHz (PC5-68800), this board accommodates up to 256GB across 4 DIMM slots in a dual-channel configuration. It supports XMP 3.0 and EXPO memory profiles for easy tuning of compatible modules.
  • Expansion Slots: Equipped with PCIe 5.0 x16 for high-speed GPU connectivity and two additional PCIe x16 slots (running at x4) for added expansion possibilities.
  • Storage: Offers extensive storage options with four M.2 slots supporting PCIe 5.0, PCIe 4.0, and NVMe for fast data transfer, as well as four SATA3 (6Gb/s) connectors. The board includes RAID support for both SATA and NVMe, providing versatility for storage configurations.
  • Connectivity and I/O: A rich array of USB ports includes dual USB4 (40Gbps) Type-C, four USB 3.x (10Gbps) Type-A, and four USB 3.x (5Gbps) Type-A ports on the rear panel, along with HDMI and Type-C graphics outputs. Additionally, it includes a 5Gbps Realtek LAN port and Qualcomm Wi-Fi with Bluetooth for versatile networking.
  • Audio: Integrated Realtek ALC1220 audio chipset delivers 7.1-channel audio, enhanced for immersive sound quality suitable for gaming and multimedia.
  • RGB and Cooling: The board supports RGB Fusion with RGB and ARGB headers, along with an ARGB 5V 3-pin and a 4-pin RGB header for customizable lighting. M.2 heatsinks and VRM heatsinks ensure stable performance, while numerous fan headers provide cooling flexibility.

Additional features include BIOS flashback, clear CMOS, on-board power and reset buttons, and debug LED for diagnostics. The integrated I/O shield adds convenience during installation, and a reinforced I/O armor LED contributes to the overall aesthetics.
