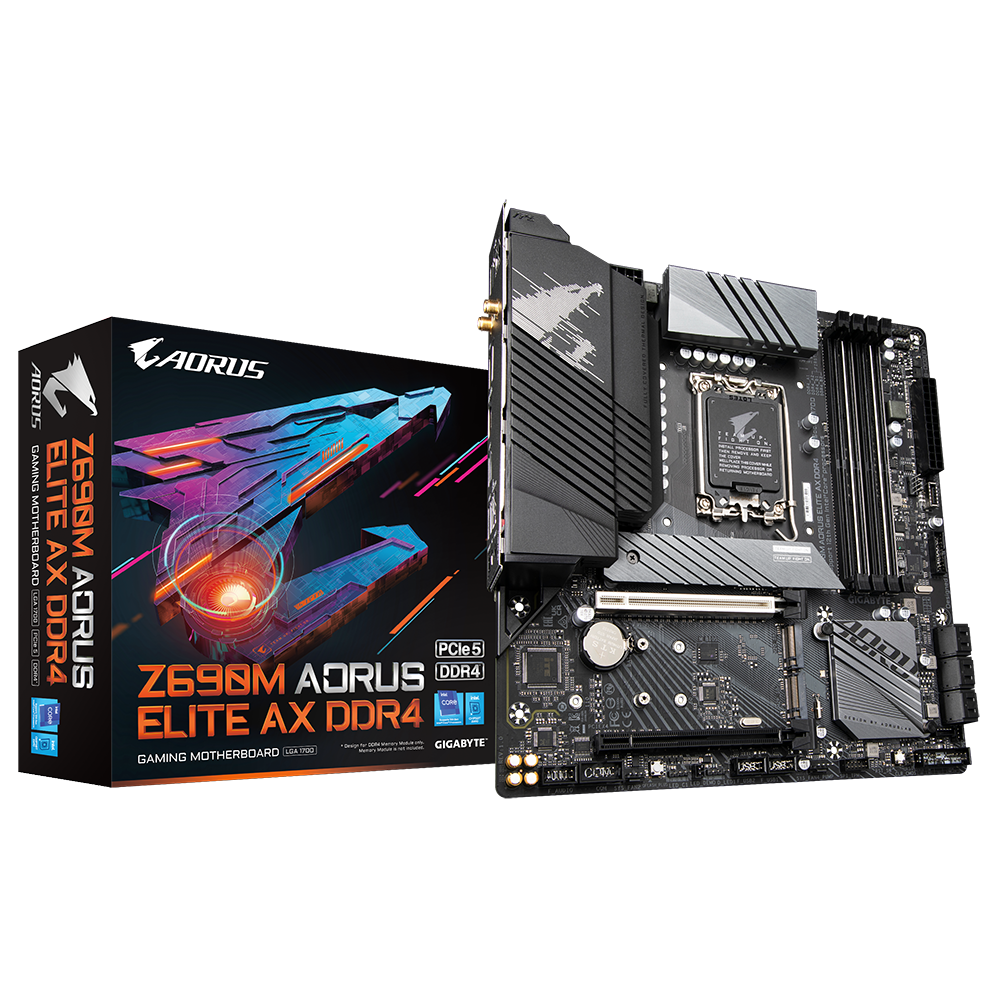

The GIGABYTE Z690M AORUS ELITE AX, released in January 2022, is a micro-ATX motherboard designed for Intel CPUs using the LGA1700 socket. This board, leveraging the Intel Z690 chipset, combines high performance, extensive connectivity options, and advanced features suitable for gamers and PC enthusiasts.

Key features of the GIGABYTE Z690M AORUS ELITE AX include:

  • Product Type: Intel CPU motherboard
  • CPU Socket: Intel LGA1700
  • Chipset: Intel Z690
  • Power Phase Design: 12+1+2 phases, each delivering 60A for stable and efficient power delivery
  • Form Factor: Micro-ATX (24.4 x 24.4 cm)

Memory Support:

  • Type: DDR4
  • Speed: Up to 5333MHz (PC4-42600)
  • Slots: 4 DIMM slots
  • Channel: Dual-channel memory architecture
  • Maximum Capacity: 128GB
  • Technologies: Supports XMP for easy overclocking and Optane memory for enhanced performance

Expansion Slots:

  • PCIe Slots:
    • Two PCIe 5.0 x16 slots (1st slot positioned at the 24.4 cm mark for optimal GPU installation)
  • Multi-GPU Support: CrossFire

Storage Options:

  • M.2 Slots: Three M.2 slots supporting PCIe 4.0, NVMe, and various form factors (2260, 2280, 22110)
  • SATA Ports: Six SATA3 (6Gb/s) ports
  • RAID Support: SATA RAID

Graphics Output:

  • HDMI: Yes
  • DisplayPort: Yes

Rear I/O Ports:

  • USB Ports:
    • One USB 3.x 20Gbps Type-C
    • One USB 3.x 10Gbps Type-A
    • Four USB 3.x 5Gbps Type-A
    • Four USB 2.0 Type-A
  • Other Ports:
    • RJ-45
    • S/PDIF
    • Audio jacks

Networking:

  • Wired LAN: Intel I225V 2.5Gbps Ethernet
  • Wireless LAN: Included Wi-Fi and Bluetooth

Audio:

  • Audio Chipset: Realtek ALC897, providing high-definition audio

Internal Headers:

  • USB Headers:
    • USB 3.0
    • USB 2.0
    • USB 3.1 Type-C
  • RGB Headers:
    • Two RGB 12V 4-pin headers
    • Two ARGB 5V 3-pin headers
  • Fan Headers: Three 4-pin system fan headers
  • Other Headers:
    • TPM header

Additional Features:

  • Cooling Solutions:
    • Includes M.2 heatsinks for improved thermal management
    • DrMOS for efficient power delivery
  • Lighting: Integrated RGB FUSION lighting system for customizable aesthetics
  • BIOS: UEFI BIOS for a user-friendly interface and advanced system configuration

The GIGABYTE Z690M AORUS ELITE AX is an excellent choice for users looking for a compact yet powerful motherboard with advanced connectivity, high-speed networking, and robust power delivery, all wrapped in a stylish and customizable package.
