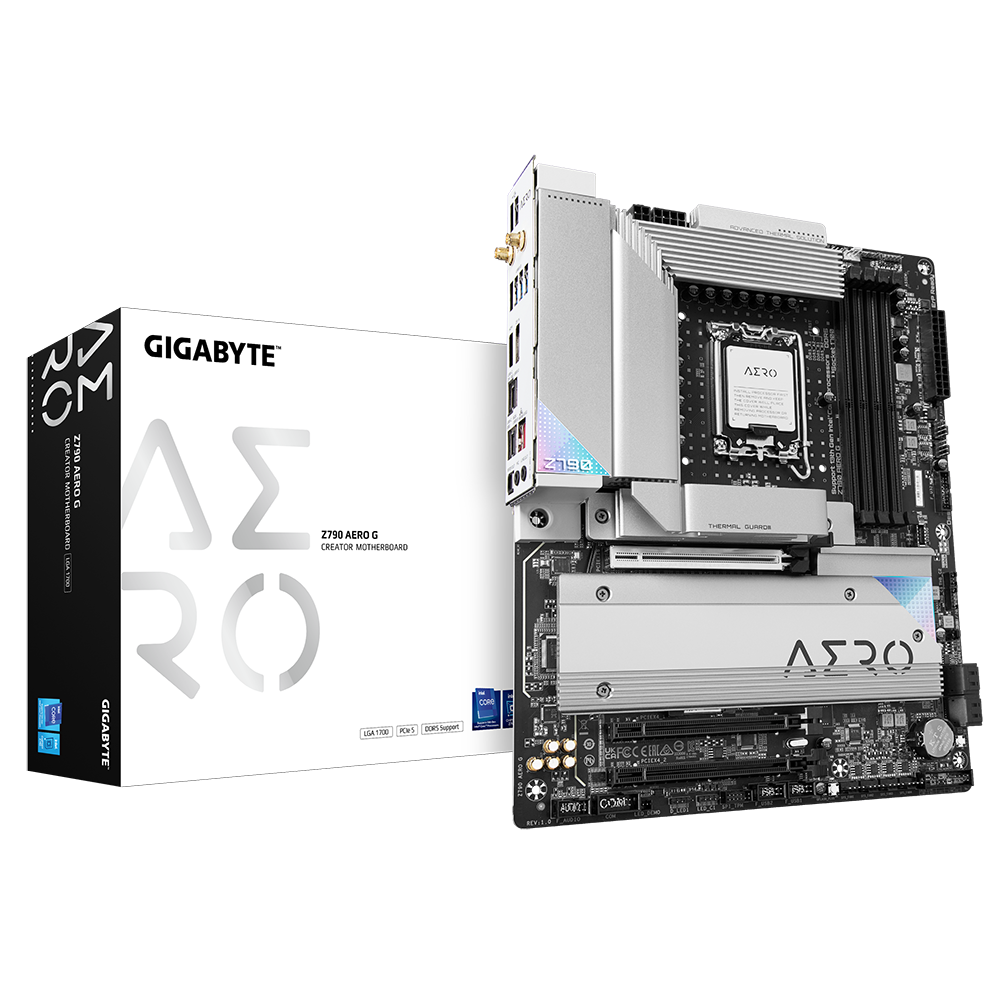

The GIGABYTE Z790 AERO G is a high-performance ATX motherboard designed for Intel CPUs with the LGA 1700 socket, released in November 2022. This motherboard leverages the Intel Z790 chipset, supporting advanced features and connectivity options suitable for both gaming and professional use.

Key features of the GIGABYTE Z790 AERO G include:

  • Power and Performance:
    • Equipped with a robust 16+1+2 phase power design, each phase delivering 70A for stable and efficient power delivery.
    • Supports DDR5 memory with speeds up to 7600MHz and a maximum capacity of 128GB across four slots, utilizing dual-channel architecture and XMP 3.0 for enhanced performance.
  • Expansion Slots:
    • Offers one PCIe 5.0 x16 slot and two PCIe 4.0 x16 slots (running at x4), supporting CrossFire for multi-GPU setups.
    • Comprehensive storage options with five M.2 slots (supporting PCIe 5.0, PCIe 4.0, NVMe, and SATA) and four SATA 3.0 ports, supporting both NVMe and SATA RAID configurations.
  • Connectivity:
    • Rich selection of USB ports, including:
      • One rear USB 3.x 20Gbps Type-C
      • One rear USB 3.x 10Gbps Type-C
      • Two rear USB 3.x 10Gbps Type-A
      • Four rear USB 3.x 5Gbps Type-A
      • Two rear USB 2.0 Type-A
    • Additional headers for front panel USB 3.0, USB 2.0, and USB 3.2 Type-C.
    • HDMI and Type-C for display output.
  • Networking:
    • Features Intel 2.5GbE LAN for high-speed wired connections.
    • Integrated Intel AX211 chipset for Wi-Fi and Bluetooth connectivity.
  • Audio:
    • Powered by the Realtek ALC1220-VB chipset, providing high-definition 7.1 channel audio for immersive sound quality.
  • Cooling and Customization:
    • Six system fan headers, plus headers for RGB (12V 4-pin) and ARGB (5V 3-pin) lighting.
    • Includes M.2 heatsinks and comprehensive power heatsinks for optimal thermal performance.
  • Additional Features:
    • Full support for SPS (DrMOS), TPM header, and UEFI for advanced system management and security.

The GIGABYTE Z790 AERO G combines cutting-edge technology, extensive connectivity options, and robust power delivery, making it an excellent choice for building a powerful and versatile Intel-based system.
