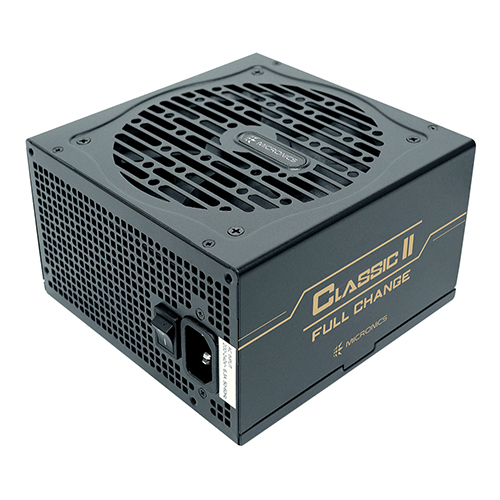

The Micronics Classic II 700W 80 PLUS BRONZE, released in April 2021, is a reliable and efficient ATX power supply unit designed to deliver stable power to a variety of desktop configurations. It boasts several key features that make it a solid choice for users looking for performance and durability.

Key specifications include:

  • Rated Output: 700W
  • 80 PLUS Certification: Bronze, ensuring good energy efficiency
  • ETA Certification: Bronze
  • LAMBDA Certification: Standard
  • Voltage Regulation: ±0.3%
  • +12V Output: Single rail design with 100% availability

Power and cooling specifications ensure efficient and stable operation:

  • Power Factor Correction (PFC): Active PFC with 99% power factor
  • Cooling: 120mm fan with LLS (Long Life Sleeve) bearing
  • Dimensions: Depth of 140mm

The PSU is fully equipped with necessary DC outputs:

  • +3.3V Output: 22A
  • +5V Output: 22A
  • +12V Output: 58.3A
  • -12V Output: 0.3A
  • +5Vsb Output: 3.0A

Connector configurations support a wide range of components:

  • Main Power Connector: 24-pin (20+4)
  • Auxiliary Power Connector: 8+4+4-pin
  • PCIe Connectors:
    • 1 x 16-pin (12+4) 12VHPWR
    • 2 x 8-pin (6+2)
  • SATA Connectors: 6
  • IDE 4-pin Connectors: 4

Additional functionalities and design features include:

  • Fanless Mode: For silent operation under low loads
  • Automatic Fan Control: To adjust fan speed based on temperature
  • Standby Power Consumption: Less than 1W
  • Flat Cables: For better cable management and airflow

The internal design ensures long-term reliability:

  • 105°C Capacitors
  • DC to DC Design

Comprehensive protection circuits include:

  • Over Voltage Protection (OVP)
  • Under Voltage Protection (UVP)
  • Over Power Protection (OPP)
  • Over Temperature Protection (OTP/OHP)
  • Short Circuit Protection (SCP)

With a 7-year warranty, the Micronics Classic II 700W 80 PLUS BRONZE offers peace of mind and ensures a dependable power supply for your computing needs.
