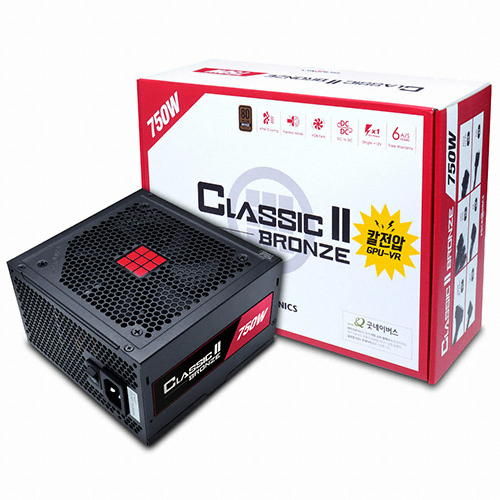

The Micronics Classic II 750W 80 PLUS Bronze is a robust ATX power supply unit released by Micronics in August 2019. Designed to deliver a reliable and efficient power solution, this PSU boasts a 750W rated output with 80 PLUS Bronze certification, ensuring energy efficiency and cost savings.

Key specifications include:

  • +12V Single Rail design with a 100% availability, providing a robust 62.5A output
  • Active PFC (Power Factor Correction) with a power factor of 99%
  • 120mm cooling fan equipped with HDB/HYB bearings for quiet and efficient cooling
  • Fanless mode and automatic fan speed adjustment to reduce noise during low loads
  • Flat cables for better cable management and improved airflow within the case
  • Full suite of connectors:
    • 24-pin main power connector (20+4)
    • One 8+4+4-pin auxiliary power connector
    • Four PCIe 8-pin (6+2) connectors
    • Six SATA connectors
    • Four IDE 4-pin connectors
    • One FDD connector

The PSU features high-quality components, including 105°C capacitors and a DC to DC design, enhancing its stability and reliability.

For enhanced safety and protection, the unit is equipped with multiple protection circuits:

  • Over Voltage Protection (OVP)
  • Under Voltage Protection (UVP)
  • Over Power Protection (OPP)
  • Over Temperature Protection (OTP/OHP)
  • Short Circuit Protection (SCP)

Additional features include:

  • Standby power consumption of less than 1W, meeting energy efficiency standards
  • A generous 6-year warranty, providing long-term reliability and support

With a depth of 140mm, the Micronics Classic II 750W 80 PLUS Bronze is compact and versatile, making it an excellent choice for a wide range of PC builds, offering dependable performance and efficiency.
