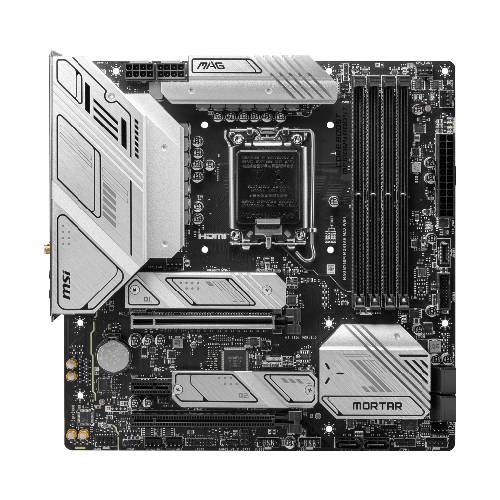

The Mortar MSI MAG B760M is a versatile and high-performance micro-ATX motherboard designed for Intel CPUs, introduced in January 2023. This motherboard offers robust features and supports the latest technologies, making it suitable for a wide range of computing needs.

Key specifications include:

  • Product Type: Designed for Intel CPUs
  • CPU Socket: Intel LGA 1700
  • Chipset: Intel B760
  • CPU Support: 1 CPU
  • Form Factor: Micro-ATX (24.4 x 24.4 cm)
  • Power Phase Design: 14-phase power delivery with 75A per phase

Memory capabilities:

  • Type: DDR5
  • Speed: Up to 7000MHz (PC5-56000)
  • Slots: 4 DIMM slots
  • Maximum Capacity: Supports up to 192GB
  • Channels: Dual-channel support
  • XMP 3.0: Supported for easy memory overclocking

Expansion slots:

  • VGA Connection: PCIe 5.0 x16 in the primary slot
  • Additional Slots: 1 PCIe x16 (at x4) slot and 1 PCIe x1 slot
  • PCIe Versions: Supports PCIe 5.0, 4.0, and 3.0

Storage interfaces:

  • M.2 Slots: 2 M.2 slots supporting PCIe 4.0, NVMe, and SATA
  • SATA Ports: 4 SATA3 (6Gb/s) ports
  • RAID Support: SATA RAID supported

Graphics output:

  • Ports: HDMI and DisplayPort available for integrated graphics

Rear I/O ports:

  • USB Ports:
    • USB 3.x 20Gbps: 1 Type-C port
    • USB 3.x 10Gbps: 3 Type-A ports
    • USB 2.0: 4 ports
  • Network: Realtek 8125BG chipset with 2.5Gbps wired LAN, 1 RJ-45 port
  • Audio: Realtek ALC897 chipset providing 7.1 channel analog output with S/PDIF and audio jacks

Internal headers and features:

  • USB Headers:
    • USB 3.0: 1 header
    • USB 2.0: 2 headers
    • USB 3.1 Type-C: 1 header
  • Fan Headers: 4 system fan headers (4-pin)
  • RGB Headers:
    • 1 RGB 12V 4-pin header
    • 2 ARGB 5V 3-pin headers
  • Additional Features:
    • DrMOS power stages
    • Heatsinks for power delivery and M.2 slots
    • UEFI BIOS for advanced system configuration

This motherboard’s comprehensive feature set, including support for the latest memory and storage technologies, high-speed connectivity options, and efficient power delivery, makes it an excellent choice for building a powerful and versatile PC.
