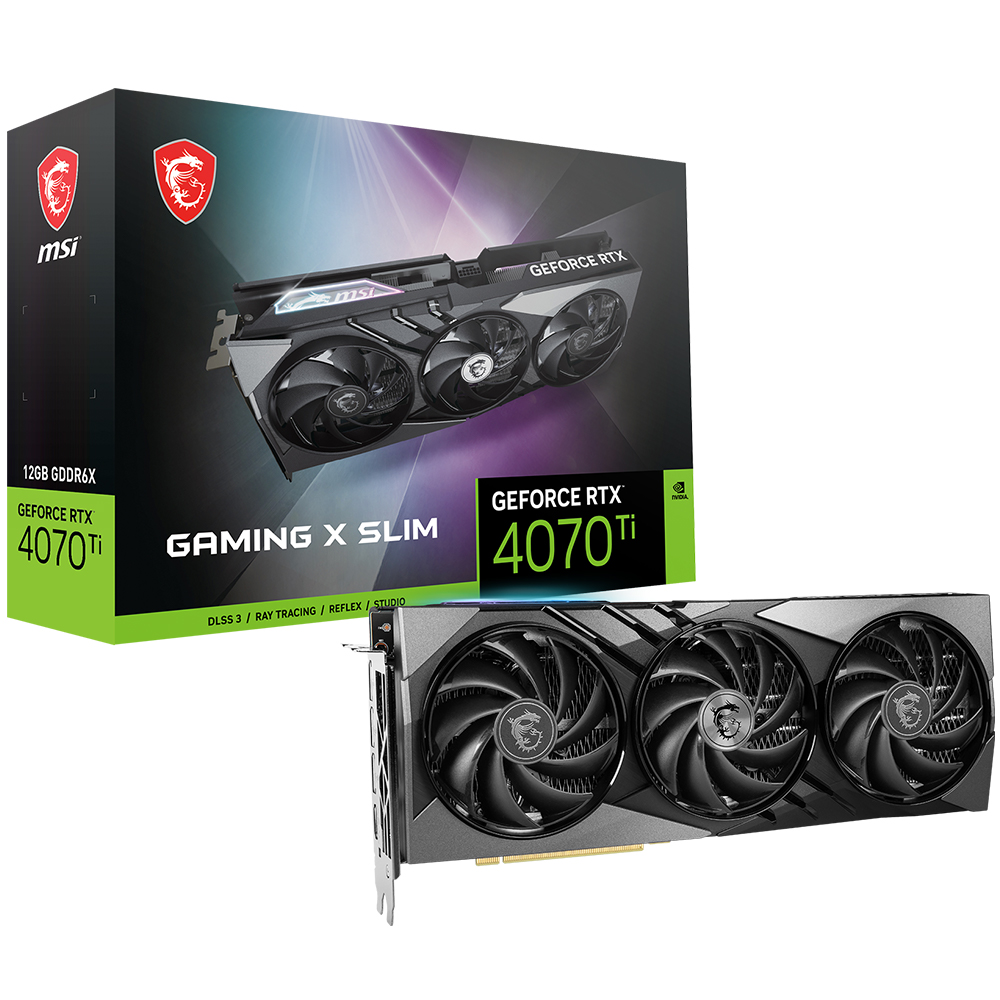

The MSI GeForce RTX 4070 Ti Gaming X Slim D6X 12GB Tri Frozr 3, released in September 2023, is a high-performance graphics card designed for gamers and professionals seeking advanced graphics capabilities and efficient cooling solutions. This GPU is part of NVIDIA’s GeForce RTX 40 series and utilizes state-of-the-art technologies to deliver superior performance.

Key specifications include:

  • Chipset: NVIDIA GeForce RTX 4070 Ti, based on the 4nm manufacturing process.
  • Boost Clock: 2730MHz with an overclocking potential of 2745MHz.
  • CUDA Cores: 7680, offering substantial parallel processing power.
  • Interface: PCIe 4.0 x16 for high-speed connectivity.

Memory details:

  • Type: GDDR6X
  • Clock Speed: 21000MHz
  • Capacity: 12GB
  • Bus Width: 192-bit, providing efficient data throughput.

Display connectivity:

  • Outputs: One HDMI port and three DisplayPort connections, supporting up to four monitors simultaneously. It also supports 8K and 4K resolutions, HDR, and HDCP 2.3.

Power and cooling:

  • Power Consumption: Rated for a maximum of 285W, with a recommended power supply of 700W or higher. It utilizes a 16-pin (12VHPWR) power connector.
  • Cooling System: Tri Frozr 3 design with three fans, heat pipes, and a heatsink for effective thermal management. Features Zero Fan (0-dB) technology, which stops the fans under low loads to reduce noise.

Physical dimensions:

  • Length: 307mm
  • Thickness: 51mm
  • Fans: Three fans for enhanced cooling performance.

Additional features:

  • Backplate: Provides additional structural integrity and passive cooling.
  • DrMOS: Integrated for efficient power delivery.
  • LED Lighting: Customizable side LED lighting for aesthetic appeal.
  • Included Accessories: Comes with a VGA support bracket and a 2×8-pin to 16-pin connector for easy installation.

The MSI GeForce RTX 4070 Ti Gaming X Slim combines high-end graphics performance with advanced cooling and power management features, making it an excellent choice for demanding gaming setups and professional workflows.
