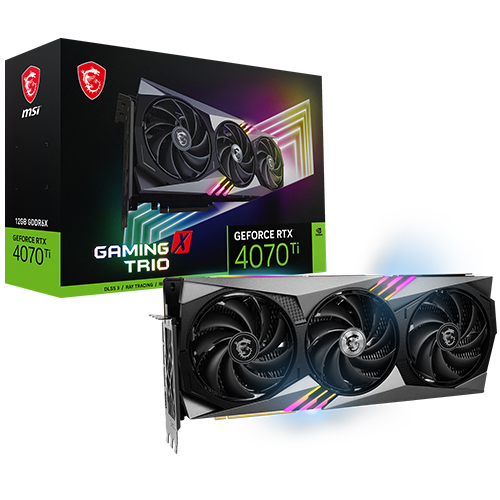

MSI GeForce RTX 4070 Ti Gaming X Trio D6X 12GB Tri-Frozr 3

The MSI GeForce RTX 4070 Ti Gaming X Trio D6X 12GB Tri-Frozr 3 is a top-tier graphics card designed for high-performance gaming and professional applications. Released in January 2023, this card leverages NVIDIA’s advanced technologies to deliver exceptional visual performance and efficiency.

Key specifications include:

• Chipset Manufacturer: NVIDIA
• Product Series: GeForce RTX 40
• GPU Manufacturing Process: 4nm
• NVIDIA Chipset: RTX 4070 Ti
• Boost Clock: 2745MHz
• OC Clock: 2760MHz
• CUDA Cores: 7680
• Interface: PCIe 4.0 x16

Memory specifications:

• Type: GDDR6X (DDR6X)
• Clock Speed: 21000MHz
• Capacity: 12GB
• Bus Width: 192-bit

Graphics output options:

• HDMI Ports: 1
• DisplayPort: 3
• Maximum Monitor Support: Up to 4 monitors

Supported features:

• Zero Fan (0-dB Technology)
• 8K and 4K Support
• HDR Support
• HDCP Support

Power requirements:

• Power Consumption: Up to 285W
• Recommended Power Supply: 700W or higher
• Power Connector: 16-pin (12VHPWR)

Cooling system:

• Heatsink
• Heat Pipes
• Triple Fan Design (Tri-Frozr 3) for efficient cooling

Physical dimensions:

• Length: 337mm
• Thickness: 62mm
• Fans: 3

Additional features:

• Backplate
• DrMOS
• LED Lighting: Both front and side LEDs
• Dual BIOS

Included accessories:

• VGA Support Bracket
• 2×8-pin to 16-pin Connector

The MSI GeForce RTX 4070 Ti Gaming X Trio D6X 12GB Tri-Frozr 3 offers a blend of powerful performance, efficient cooling, and advanced features, making it an excellent choice for gamers and professionals seeking to maximize their system’s capabilities.
