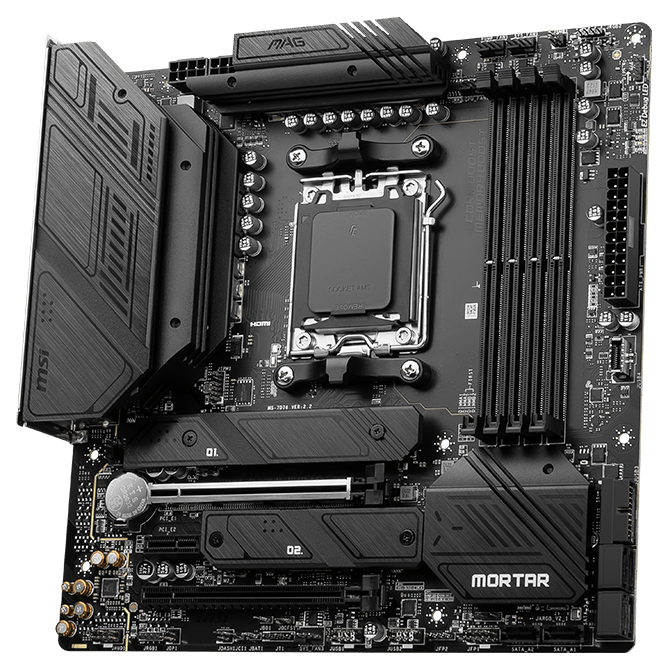

The MSI MAG B650M Mortar WIFI, introduced in October 2022, is a robust motherboard designed for AMD CPUs with the AM5 socket. It utilizes the AMD B650 chipset, offering a balanced combination of performance and features for mainstream users and gamers.
Key features of the MSI MAG B650M Mortar WIFI include:
- Form Factor: Micro-ATX (24.4 x 24.4 cm), making it suitable for compact builds.
- Power Design: 12+2+1 phase power delivery with 80A per phase for reliable and stable power to the CPU.
Memory support highlights:
- Type: DDR5, ensuring high-speed memory performance.
- Speed: Capable of supporting memory speeds up to 7600MHz (PC5-60800).
- Slots: Four DIMM slots with dual-channel architecture, supporting a maximum memory capacity of 192GB.
- EXPO: Support for AMD EXPO memory profiles for easy overclocking.
Expansion and connectivity options:
- PCIe Slots: One PCIe 4.0 x16 slot for a graphics card, one PCIe 4.0 x4 slot, and one PCIe 3.0 x1 slot.
- Storage Interfaces: Two M.2 slots (supporting PCIe 4.0 and NVMe) and six SATA3 ports for extensive storage options.
- RAID Support: Both NVMe and SATA RAID configurations are supported for enhanced data redundancy and performance.
Graphics and display outputs include HDMI and DisplayPort, providing flexible options for connecting monitors.
Rear I/O ports offer a variety of connectivity options:
- USB Ports: Multiple USB ports, including:
- One USB 3.x Type-C port (20Gbps)
- Three USB 3.x Type-A ports (10Gbps)
- Four USB 3.x Type-A ports (5Gbps)
- Networking: Equipped with a Realtek RTL8125B chipset for 2.5Gbps wired LAN and built-in Wi-Fi and Bluetooth for wireless connectivity.
- Audio: Features a Realtek ALC4080 codec for 7.1 channel high-definition audio.
Additional features:
- Heat Management: Comes with heat sinks for the power delivery and M.2 slots to maintain optimal temperatures.
- Lighting: Includes headers for RGB and ARGB lighting to enhance the aesthetic appeal of your build.
- USB/ Fan Headers: Multiple headers for USB 3.0, USB 2.0, and system fans, including specific headers for RGB and ARGB.
The motherboard’s design incorporates DrMOS power stages, robust heat sinks, and a user-friendly UEFI BIOS, ensuring stability, efficient cooling, and ease of use for both novice and experienced builders.
