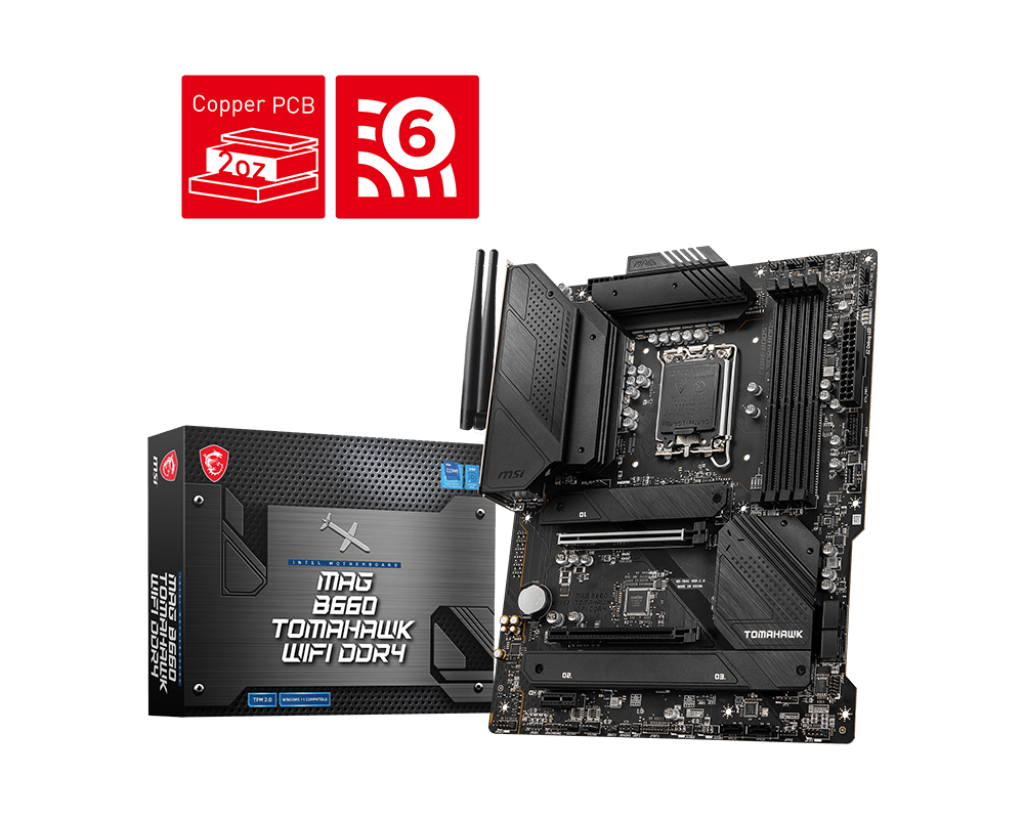

The MSI MAG B660 Tomahawk WIFI is a robust motherboard designed for Intel CPUs, specifically those compatible with the Intel socket 1700. Introduced in January 2022, this motherboard features the Intel B660 chipset, providing a solid foundation for powerful computing setups.

Key features of the MSI MAG B660 Tomahawk WIFI include:

  • ATX Form Factor: Measuring 30.5 x 24.4 cm, it fits standard ATX cases.
  • Power Phase Design: Equipped with a 12+1+1 phase power system, each phase delivering 60A, ensuring stable and efficient power delivery.

Memory Support:

  • Supports DDR4 memory with speeds up to 4800MHz.
  • Equipped with four memory slots and dual memory channels, allowing for a maximum capacity of 128GB.
  • Features XMP and Optane technology for enhanced performance and responsiveness.

Expansion Slots:

  • PCIe 4.0 x16 slots for high-speed graphics and expansion cards.
  • Multi-GPU Support: Compatible with CrossFire setups.
  • M.2 and SATA Interfaces: Three M.2 slots and six SATA3 ports, supporting various storage configurations with PCIe and NVMe technologies.
  • RAID support for SATA drives enhances data protection and performance.

Connectivity:

  • Multiple USB ports: USB 3.x 20Gbps, USB 3.x 10Gbps, and USB 2.0 options.
  • Network: Realtek 8125BG-CG chipset providing 2.5Gbps wired LAN, along with built-in Wi-Fi and Bluetooth for wireless connectivity.

Audio:

  • Realtek ALC1200P chipset delivering 7.1 channel audio for immersive sound experiences.

Additional Features:

  • Mystic Light: RGB lighting system for customizable aesthetics.
  • DrMOS and M.2 heatsink for efficient thermal management.
  • UEFI BIOS for a user-friendly interface and advanced system settings.

This motherboard is well-suited for gamers and PC enthusiasts looking for reliability, performance, and a range of modern features to build a versatile and high-performance system.
