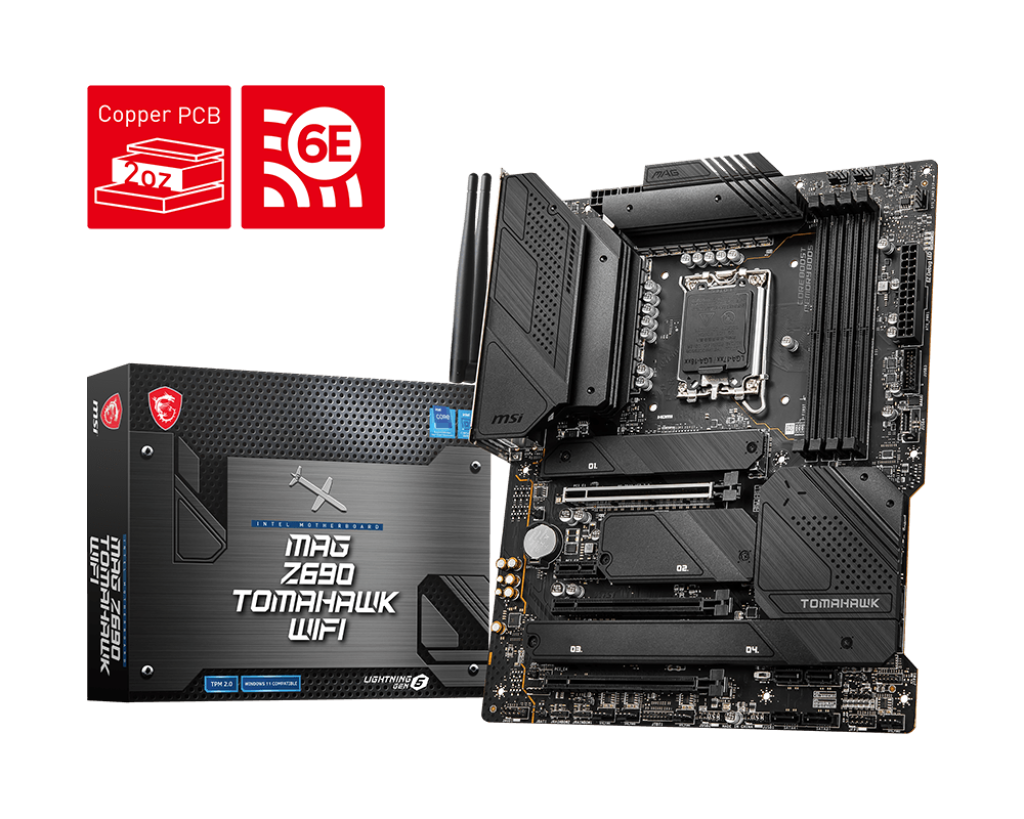

The MSI MAG Z690 Tomahawk WIFI, released in November 2021, is a feature-rich motherboard designed to support Intel’s latest CPUs on the LGA 1700 socket. This ATX form factor motherboard, measuring 30.5 x 24.4 cm, is built on the Intel Z690 chipset, making it an excellent choice for high-performance computing and gaming.

Key Features:

  • Power Delivery: The motherboard features a robust 16+1+1 phase power design with 70A per phase for Vcore single output, ensuring stable power delivery to the CPU.
  • Memory Support: Supports DDR5 memory with speeds up to 6400MHz (PC5-51200). It has four memory slots, accommodating up to 128GB of dual-channel memory. It also supports XMP 3.0 and Intel Optane memory technology.

Expansion Slots:

  • PCIe: Equipped with three PCIe x16 slots (supporting PCIe 5.0, 4.0, and 3.0) and one PCIe x1 slot. This setup supports multi-GPU configurations via CrossFire.

Storage Options:

  • M.2 Slots: Four M.2 slots supporting PCIe 4.0, NVMe, and SATA connections. Compatible with 2242, 2260, 2280, and 22110 form factors. Includes M.2 heatsinks for better thermal performance.
  • SATA Ports: Six SATA3 (6Gb/s) ports with RAID support.

Graphics Output:

  • HDMI and DisplayPort outputs for integrated graphics support.

Connectivity:

  • USB Ports:
    • Rear panel includes USB 3.x 20Gbps, USB 3.x 10Gbps, USB 3.x 5Gbps, and USB 2.0 ports.
    • Internal headers for USB 3.0, USB 2.0, and USB 3.1 Type C.
  • Networking:
    • Wired: Intel I225V chipset providing 2.5Gbps Ethernet.
    • Wireless: Includes Wi-Fi and Bluetooth.

Audio:

  • Realtek ALC4080 audio chipset for 7.1-channel output, providing high-definition audio.

Cooling and Tuning:

  • Multiple headers for fans and RGB lighting, including six system fan 4-pin headers, RGB 12V 4-pin header, and ARGB 5V 3-pin headers.
  • Features DrMOS power stages, M.2 heatsinks, and a user-friendly UEFI BIOS.

Special Features:

  • TPM Header for enhanced security.
  • DrMOS technology for efficient power delivery.
  • UEFI BIOS for easy system tuning and configuration.

The MSI MAG Z690 Tomahawk WIFI is designed to cater to enthusiasts and gamers who require a robust and versatile motherboard capable of handling the latest Intel processors, high-speed memory, and multiple GPUs. With its comprehensive connectivity options, advanced cooling solutions, and support for the latest technologies, it stands as a reliable foundation for any high-performance PC build.
