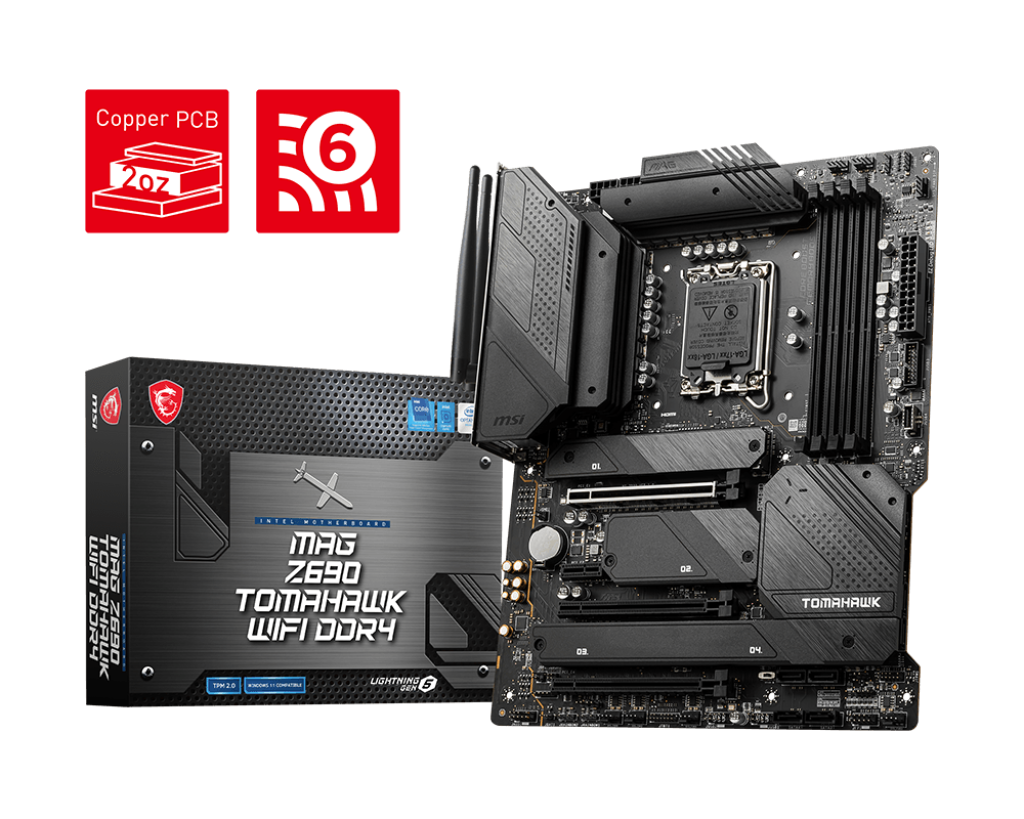

The MSI MAG Z690 Tomahawk WIFI DDR4, launched in November 2021, is an advanced ATX motherboard designed for Intel CPUs using the LGA1700 socket. This board utilizes the Intel Z690 chipset, offering a blend of performance, connectivity, and expansion options, making it ideal for gaming enthusiasts and high-performance builds.

Key specifications include:

  • Power delivery: 16+1+1 phase design with each phase supporting up to 70A, ensuring robust and stable power for overclocking and high-performance computing.
  • Memory support: Accommodates up to 128GB of DDR4 memory across four slots, with speeds up to 5200MHz, supporting dual-channel architecture. It also features XMP 3.0 and Optane memory support for enhanced performance and responsiveness.

Expansion slots and connectivity:

  • PCIe slots: One PCIe 5.0 x16 slot for the latest graphics cards, along with additional PCIe 4.0 and PCIe 3.0 slots for further expansion.
  • M.2 slots: Four M.2 slots supporting PCIe 4.0, NVMe, and SATA, with various form factors (2242, 2260, 2280, and 22110) for versatile storage options.
  • SATA ports: Six SATA3 ports for traditional HDDs and SSDs, with support for RAID configurations.

Graphics and rear I/O:

  • Graphics output: Includes HDMI and DisplayPort for integrated graphics.
  • USB ports: A variety of USB options including one USB 3.x 20Gbps Type-C, three USB 3.x 10Gbps Type-A, two USB 3.x 5Gbps Type-A, and two USB 2.0 ports.
  • Network connectivity: Equipped with Intel I225V 2.5Gbps LAN and integrated Wi-Fi and Bluetooth for flexible networking options.
  • Audio: Powered by the Realtek ALC4080 codec, providing 7.1 channel high-definition audio with both analog and S/PDIF outputs.

Additional features:

  • Cooling: Includes several fan headers, with six 4-pin system fan headers and M.2 heatsinks to ensure efficient cooling of critical components.
  • RGB and ARGB headers: Customizable lighting options with RGB 12V 4-pin and ARGB 5V 3-pin headers, along with onboard control for synchronizing with other RGB components.
  • Durability: Features DrMOS power stages, robust heatsinks, and a UEFI BIOS for advanced system tuning and stability.

The MSI MAG Z690 Tomahawk WIFI DDR4 combines high-end performance with extensive connectivity and customization options, making it an excellent choice for gamers and professionals looking to build a powerful, future-proof system.
