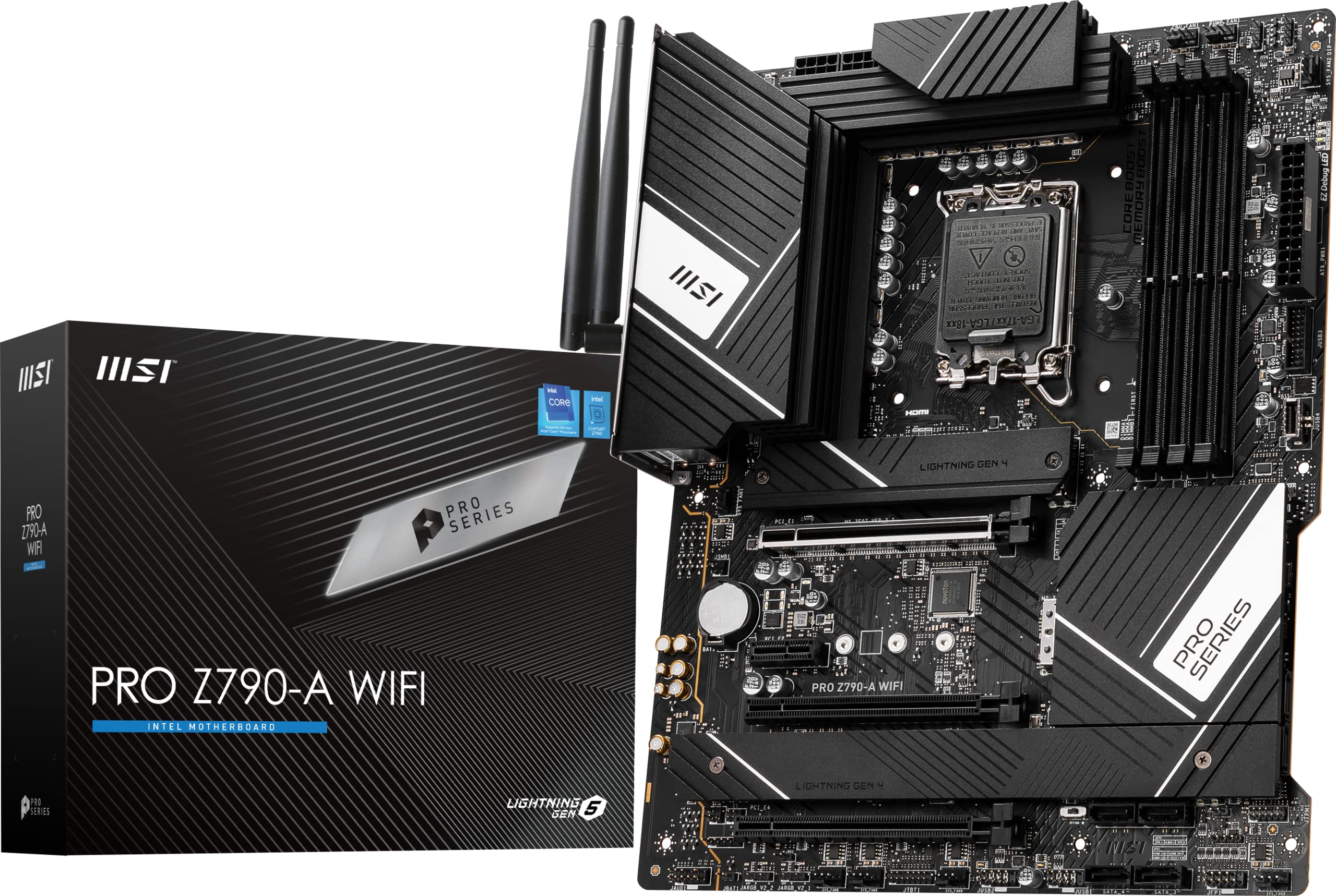

The MSI PRO Z790-A WIFI is a robust and feature-rich ATX motherboard designed for Intel CPUs with the LGA 1700 socket, released in October 2022. It leverages the advanced capabilities of the Intel Z790 chipset, making it a solid choice for professional use, gaming, and high-performance computing.

Key features of the MSI PRO Z790-A WIFI include:

  • Power and Performance:
    • Equipped with an 18-phase power delivery system, ensuring stable and efficient power distribution for demanding tasks.
    • Supports DDR5 memory with speeds up to 7200MHz (PC5-57600) and a maximum capacity of 192GB across four slots, utilizing dual-channel architecture and XMP 3.0 for enhanced performance.
  • Expansion Slots:
    • Offers a variety of PCIe slots for expansion:
      • One PCIe 5.0 x16 slot for high-performance graphics cards.
      • One PCIe 4.0 x16 slot (running at x4), one PCIe 4.0 x16 slot (running at x1), and one PCIe 3.0 x1 slot for additional expansion cards.
  • Storage Options:
    • Includes four M.2 slots supporting PCIe 4.0 and NVMe, providing fast storage solutions.
    • Six SATA 3.0 ports for additional storage options.
    • Supports both NVMe and SATA RAID configurations, allowing for flexible and high-performance storage setups.
  • Connectivity:
    • Rich selection of USB ports:
      • One rear USB 3.x 20Gbps Type-C
      • Three rear USB 3.x 10Gbps Type-A
      • Two rear USB 3.x 5Gbps Type-A
      • Two rear USB 2.0 Type-A
    • Additional headers for front panel USB 3.0, USB 2.0, and USB 3.1 Type-C.
    • HDMI and DisplayPort for integrated graphics output.
  • Networking:
    • Features Intel 2.5Gb LAN for high-speed wired connections.
    • Integrated Wi-Fi and Bluetooth using Intel-based wireless solutions for versatile connectivity options.
  • Audio:
    • Powered by the Realtek ALC4080 chipset, providing high-definition 7.1 channel audio for an immersive sound experience.
  • Cooling and Customization:
    • Equipped with numerous headers for cooling and RGB lighting:
      • Six system fan headers
      • One 12V RGB header and three 5V ARGB headers
    • Includes M.2 heatsinks and comprehensive power heatsinks for optimal thermal performance.
    • Supports customizable RGB lighting.
  • Additional Features:
    • Enhanced with UEFI BIOS for easy system management and configuration.
    • Includes TPM header for added security.
    • DrMOS and substantial power heatsinks for better stability and cooling efficiency.

The MSI PRO Z790-A WIFI is designed to cater to the needs of power users, offering extensive expansion capabilities, robust power delivery, and advanced connectivity options, making it an excellent choice for building high-performance systems.
