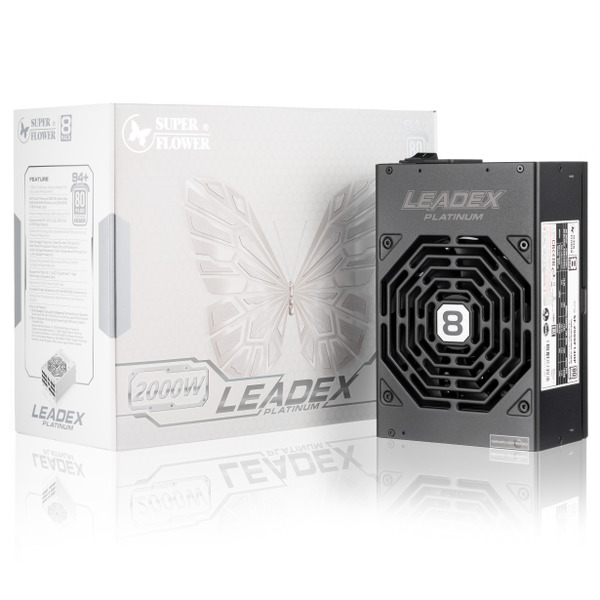

SuperFlower SF-2000F14HP LEADEX PLATINUM

The SuperFlower SF-2000F14HP LEADEX PLATINUM, released in August 2015, is a high-capacity ATX power supply unit designed for extreme performance and reliability, making it suitable for power-hungry systems and demanding applications.

Key specifications include:

• Rated Output: 2000W, providing ample power for high-end gaming rigs, workstations, and servers.
• 80 PLUS Certification: Platinum, ensuring high energy efficiency with at least 90% efficiency at 20%, 50%, and 100% loads.
• +12V Single Rail Design: With a +12V rail output of 166.6A, capable of delivering 99% of the PSU’s total power, ensuring stable and reliable performance for high-power components.

Cooling and design:

• Cooling Fan: 140mm fan with dual ball bearings for durability and efficient cooling.
• Fan Count: One fan, designed for effective heat dissipation.
• Automatic Fan Control: The fan speed adjusts automatically based on load and temperature to optimize cooling and reduce noise.
• Physical Dimensions: Depth of 225mm, making it compatible with most standard ATX cases.
• Modular Design: Fully modular cabling system, allowing for easier cable management and improved airflow.
• Flat Cables: Included for better cable routing and management.

Electrical specifications:

• Active PFC (Power Factor Correction): Ensures a high power factor of 99%, improving efficiency and reducing power losses.
• DC Output:
  • +3.3V: 24A
  • +5V: 24A
  • +12V: 166.6A
  • -12V: 0.5A
  • +5Vsb: 3.0A

Connector availability:

• Main Power: 24-pin (20+4)
• CPU Power: Two 8-pin (4+4) connectors
• PCIe Power:
  • Two 16-pin (12VHPWR)
  • Nine 8-pin (6+2)
  • Five 6-pin
• Peripheral Power:
  • Sixteen SATA connectors
  • Six IDE 4-pin connectors
  • Two FDD connectors

Additional features:

• Standby Power: Less than 1W, ensuring energy efficiency even when the system is off.
• High-Quality Components: Uses 105°C-rated capacitors for improved reliability and longevity.
• DC to DC Design: Provides stable and efficient power conversion.
• Protection Circuits: Includes Over Voltage Protection (OVP), Over Power Protection (OPP), Over Temperature Protection (OTP/OHP), and Short Circuit Protection (SCP) for comprehensive safety.

Warranty:

• Service: 7-year warranty, reflecting the manufacturer’s confidence in the PSU’s durability and performance.

The SuperFlower SF-2000F14HP LEADEX PLATINUM is engineered for users requiring exceptional power and efficiency. Its high wattage, extensive connector options, and robust protection features make it an ideal choice for high-performance systems and professional setups.
