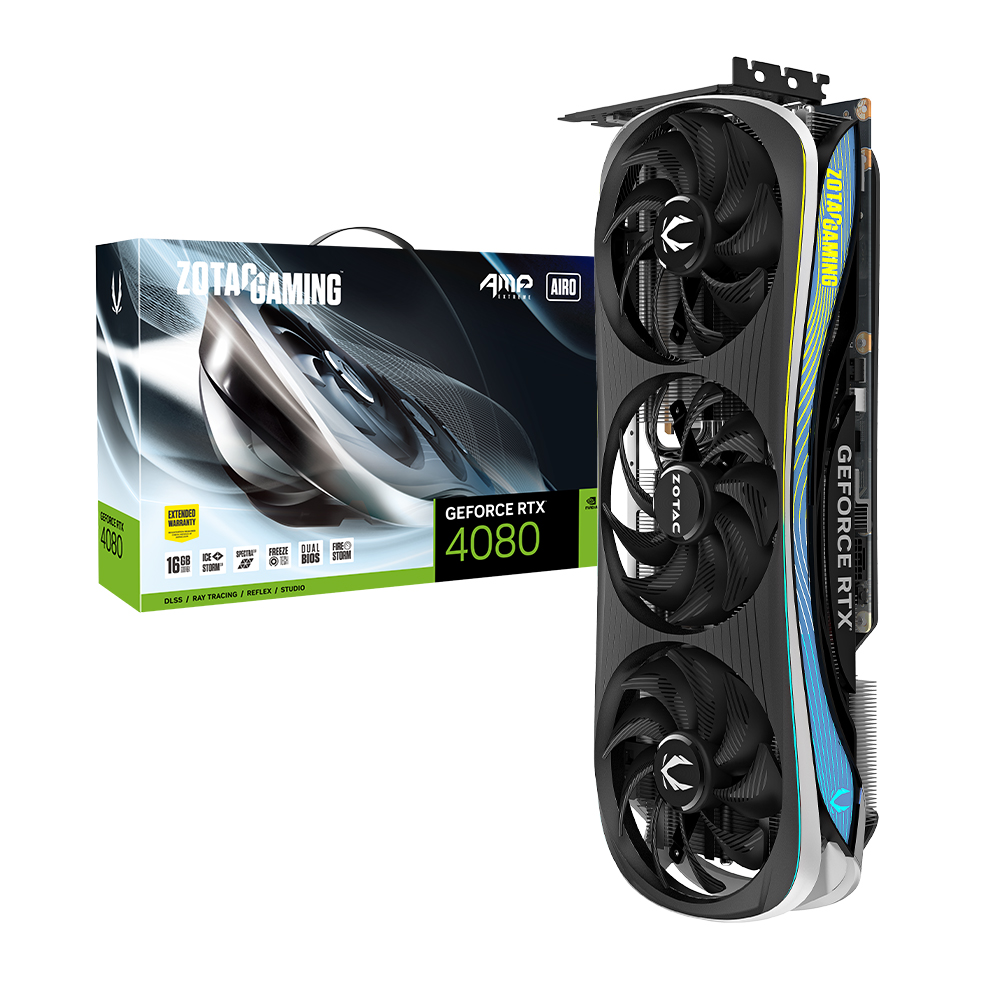

The ZOTAC GAMING GeForce RTX 4080 16GB AMP Extreme AIRO is a high-end graphics card, introduced in November 2022. Designed by ZOTAC and built on NVIDIA’s cutting-edge 4nm process technology, this GPU is part of the GeForce RTX 40 series, featuring the powerful RTX 4080 chipset.

Key specifications include:

  • Boost clock speed of 2565MHz
  • CUDA cores: 9728
  • Memory: 16GB of GDDR6X, operating at 22400MHz with a 256-bit memory bus
  • Interface: PCIe 4.0 x16

For display outputs, it offers:

  • 1 HDMI port
  • 3 DisplayPort outputs
  • Support for up to 4 monitors simultaneously

The card includes advanced features such as:

  • 0-dB technology for silent operation when under low load
  • Support for 8K and 4K resolutions
  • HDR and HDCP 2.3 support

Power and cooling specifications:

  • Maximum power consumption: 320W
  • Recommended power supply: 750W or higher
  • Power connector: 16-pin (12VHPWR)
  • VRM phases: 24+3

The cooling system is robust, featuring:

  • Heatsink
  • Heatpipes
  • Vapor chamber
  • Triple-fan design

Additional features include:

  • Backplate
  • LED lighting on the front, back, and sides
  • Dual BIOS for flexibility

The package also comes with a VGA support bracket and a 3×8-pin to 16-pin connector.

This graphics card is engineered for gamers and creators who demand top-tier performance, reliability, and a visually striking design.
